Product Details

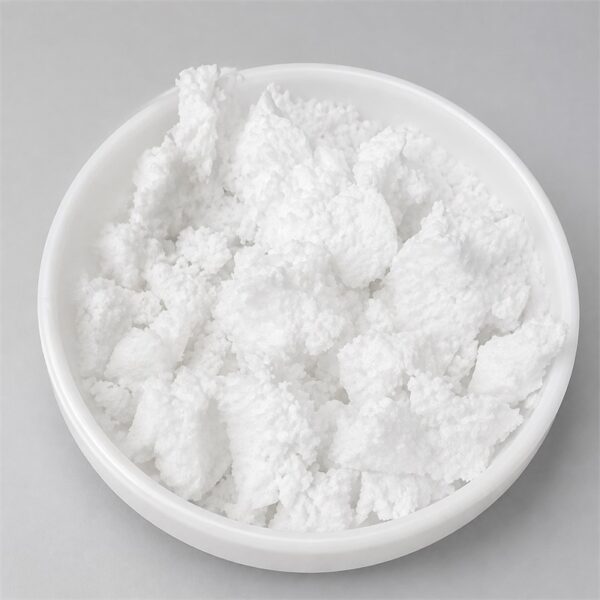

Aerogel Paste
<p>Aerogel Paste: SiO₂ aerogel water-based paste, 0.018 W/(m·K) thermal conductivity, density 60 kg/m³. For construction, industrial insulation, new energy, electronics. Lightweight, eco-friendly, processable, up to 200°C.</p>
Category
Aerogel Products
Product Overview
Performance aligned with the real application
- Low thermal conductivity
- Lightweight and highly porous structure
- Powder, paste and coating formats
- Application support for formulation and insulation routes
Product Data
Technical Specifications
Review the available performance values, physical properties and product parameters for Aerogel Paste. Confirm the current controlled data sheet before final specification.
Technical Parameters
| Item | Specification |
|---|---|
| Product Model | QN-02-50-20 |
| Main Material | SiO₂ Aerogel |
| Appearance | Water-based Paste |
| Thermal Conductivity (25°C, after drying) | 0.018 W/(m·K) |
| Aerogel Solid Content | 20% |
| Particle Size | 50 μm |
| Density | ≤450 kg/m³ |
| Temperature Resistance | ≤200°C |
| Hydrophobic Property | Restorable after drying |
| Shelf Life | 6 months |
| Packaging | 5 L / 10 L / 25 L per drum |
Reference values should be confirmed against the current controlled technical data sheet before specification or installation.
Application Scenarios
Typical project-use directions
Building insulation systems
Industrial pipes and equipment
Battery thermal management
Electronics and functional composites
Technical Documents
Request the documents required for evaluation
Controlled product manuals, technical data sheets, safety data sheets, test reports and application guidance are supplied according to product and project requirements.
FAQ
Before specification or sampling
What information is needed for product evaluation
Share the substrate, operating environment, target performance, application method and required quantity so the team can assess product fit.
Which technical documents can Huacheng provide
Available files may include a product manual, technical data sheet, safety data sheet, test report and application guidance, depending on the product and project stage.
Can Huacheng support application planning
Yes. The technical team can review project conditions, recommend an evaluation route and confirm the relevant installation or processing considerations.
Discuss Your Project
Evaluate Aerogel Paste for your application
Share substrate, operating conditions, target performance and required quantity for technical and commercial feedback.
